Product Details:
|
| Model NO.: | ZZ4257V3247B1 | Drive Wheel: | 6×4 |
|---|---|---|---|
| Engine Capacity: | ＞8L | Seats: | ≤5 |
| Horsepower: | 351-450hp | Tire Certification: | ECE, GCC, ISO, DOT |
| Tire Design: | Radial | Dumping Type: | Front Lifting Style |
| Condition: | Used | Transport Package: | In Nude |
| Specification: | 6850*2550*3200mm | Trademark: | HOWO |
| Origin: | China | HS Code: | 8701300090 |
| Supply Ability: | 4000 Pieces Peryear | After-sales Service: | Yes |
| Warranty: | 1 Year | Transmission Type: | Manual |
Product discribtion
Our Main Products Heavy Trucks, Electric vehicles and Construction Machinery. Like Brand SINOTRUK, SHACMAN, DONGFENG, WULING, FOTON ETC. Include tractor trucks, dump trucks, cargo trucks, trailer truck, Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), including dump truck, tractor truck, concrete mixer truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, and spare parts for them.

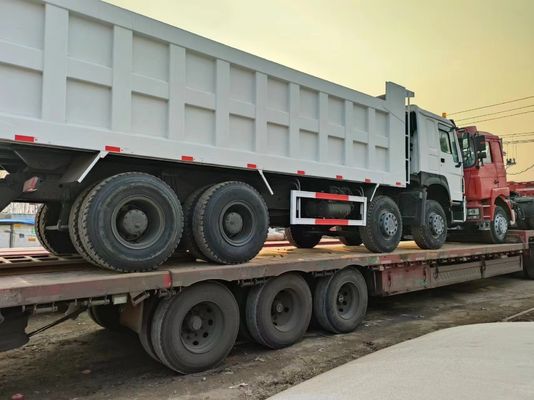

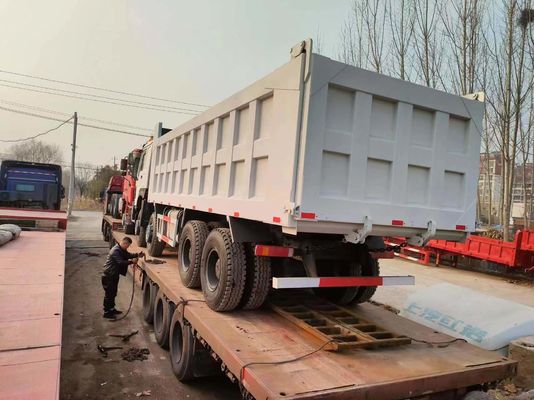

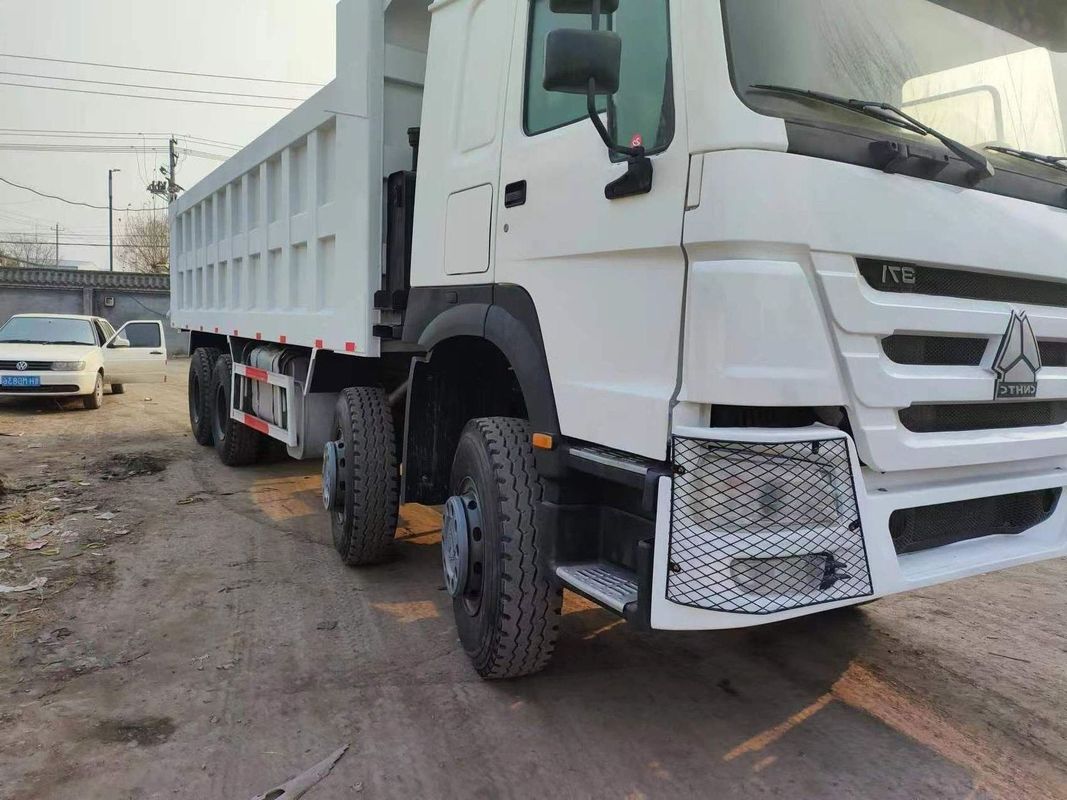

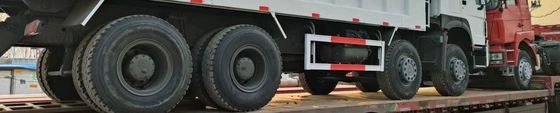

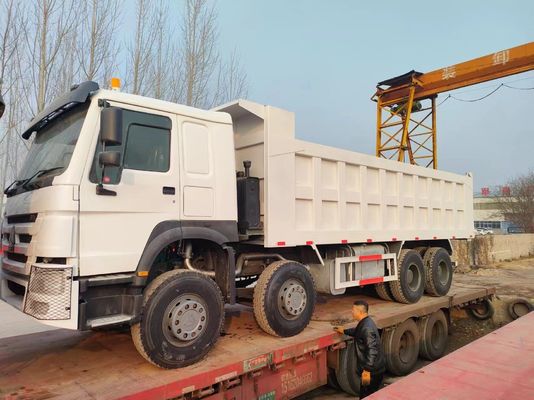

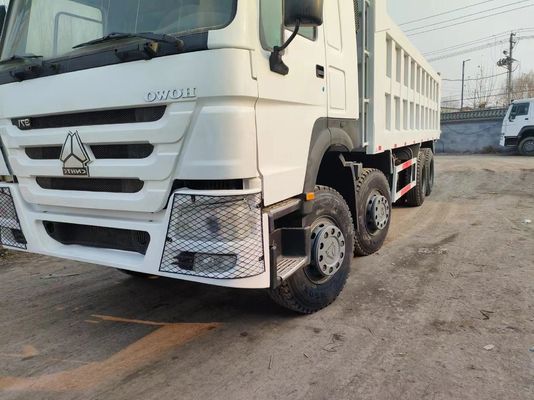

Photos of dump truck
About Product Description
SINOTRUK HOWO Euro 2 20-30 Ton Dump Tipper Trucks
Original Price: FOB, CIF
Promptly Delivery: 30-45 days
Excellent After-sale Service and Customization Service.
|
Truck Model |
ZZ4257V3247B1 |
|
|
Truck Brand |
HOWO |
|
|
Dimension (LxWxH) (unloaded)mm |
6850*2550*3200mm |
|
|
Body |
Carriage Internal Dimension:5400x2300x1500 mm Steel thickness of Carriage:Floor:8mm/Side:6mm Hydraulic Lift of Carriage:Middle Lift Steel:Q235 |
|
|
Approaching angle/ Departure angel (°) |
19/24 |
|
|
Overhang (front/rear) (mm) |
1500/1859 |
|
|
Min Turning Radius(m) |
<8m |
|
|
Wheel base (mm) |
3225+1350 |
|
|
Max. Driving speed (km/h) |
75 |
|
|
Front axle loading capacity (kg) |
9000 |
|
|
Rear axle loading capacity(kg) |
2*16000 |
|
|
Curb weight (kg) |
12290 |
|
|
Gross vehicle weight |
30000 |
|
|
Cab Model |
SINOTRUK Standard cab,no bunk, all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. |
|
|
Engine Model |
Model |
WD615.69(EURO II),336hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
|
Rated Power(kw/rpm) |
247/2200 |
|
|
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71ºC opening begin, Rigid fan |
||
|
Clutch |
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
|
|
Transmission |
Model |
SINOTRUK HW19710 transmission ,10 forward and 2 reverse |
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|
Parking Brake (emergency brake) |
Spring energy, compressed |
|
|
Steering system |
Model |
ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving) Option:ZF8098(Right hand diving) |
|
Front axle |
SINOTRUK 9000kg Front Axle,new 9-ton front axles of equipped with drum brakes. |
|
|
Rear axle |
SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. |
|
|
Wheels &Tire |
Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. |
|
|
Electrical system |
Electrics Operating voltage |
24V,negative grounded |
|
Starter |
24V,7.5 Kw |
|
|
Alternator |
3-phase,28V,1500 W |
|
|
Batteries |
2x12 V,165 Ah |
|
|
horn,headlamps,fog lights,brake lights,indicators and reverse light. |
||
|
Oil Tank |
Square type-300L fuel tank |
|
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity |
|
